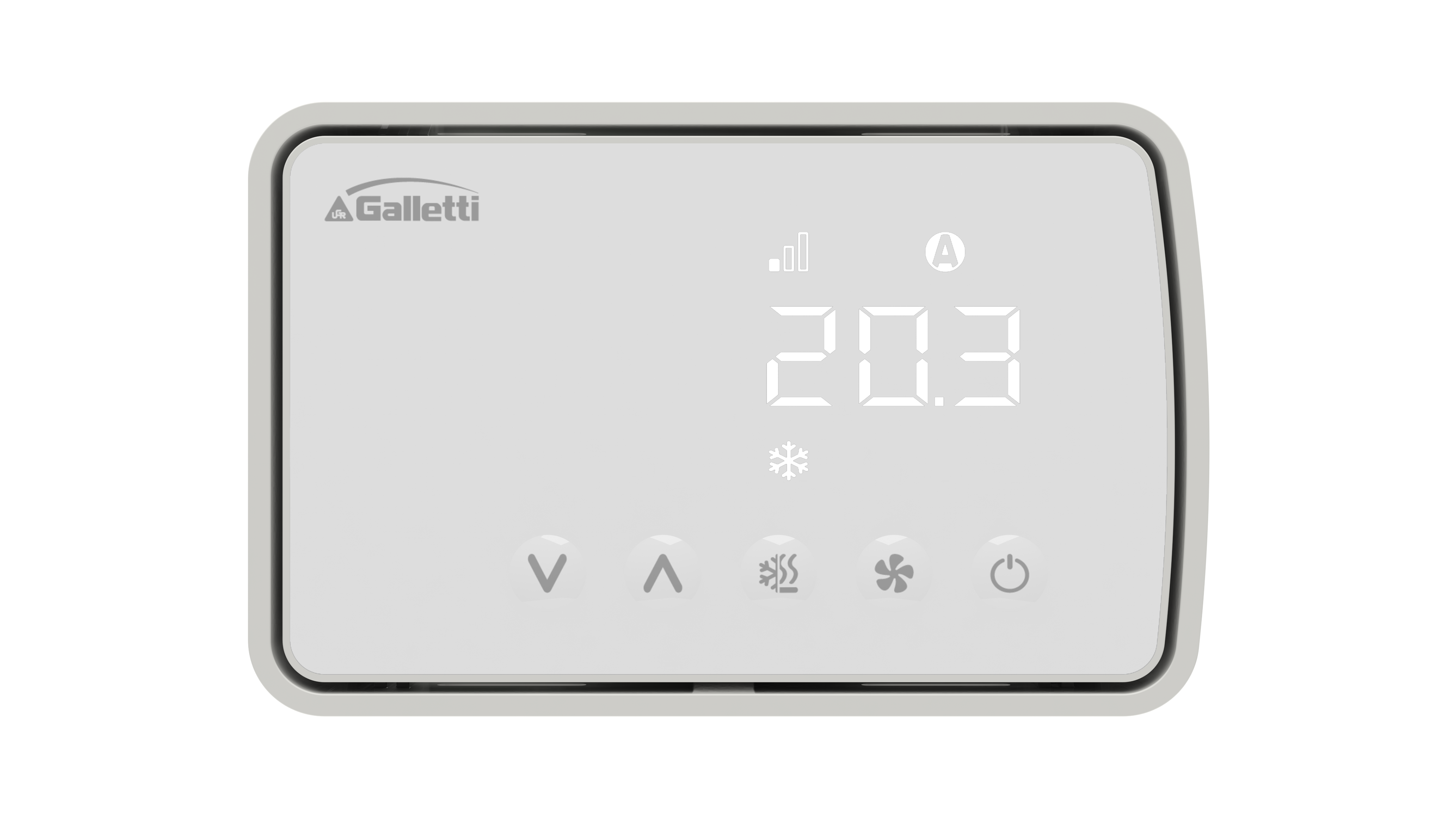

GEEC

GEEC

Microprocessor controller with LED segment display

Plus

  • Automatic ventilation
  • AC and EC motor control
  • On/Off valve control
  • Electric heater control
  • Customisable control logic
  • Water temperature reading
  • Configurable digital input
  • App GALLETTI Commissioning

Características y Versiones

  • Compatible with 2-pipe and 4-pipe systems
  • LED Display
  • Wall-mounted installation
  • Fan coil on-board installation
  • Serial port available for GEEC-485 version only

Características técnicas

GEEC is an electronic microprocessor controller for hydronic indoor units, designed to ensure customisable comfort control based on the occupant’s actual needs. The user interface, equipped with a segmented LED display and capacitive buttons, allows simple and immediate access to the main operating functions.

Through the settings menu, it is possible to adjust the standard control logic, adapting the indoor unit’s operation to the system conditions and achieving tailored comfort.

Commissioning is made quick and intuitive thanks to the GALLETTI Commissioning app, compatible with GEEC, which allows configuration of the main initial parameters of the hydronic unit and simplifies start-up procedures.

The device is designed for wall-mounted installation and is compatible with type 503 or 502 electrical junction box, ensuring high installation flexibility.

A second version, GEEC-584, is also available, integrating a serial communication port for integration into supervision systems

Componentes principales

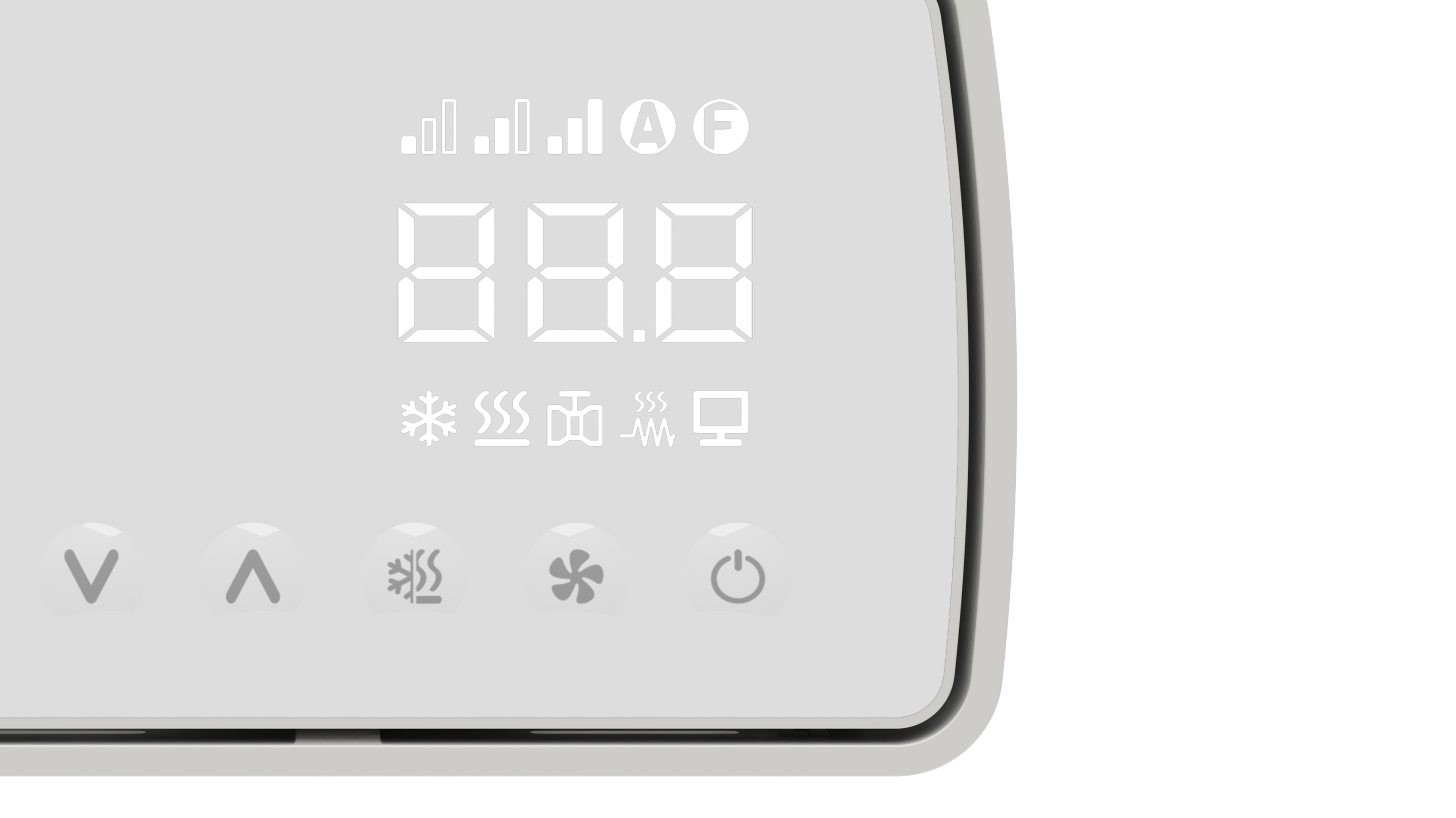

Display
Display

The LED segment display provides an intuitive, user-friendly interface, ensuring clear and immediate readout of operating information. Indeed, all status icons are shown on the display, providing instant access to the main data of interest for the terminal unit.

App GALLETTI Commissioning
App GALLETTI Commissioning

Initial parameter configuration and address assignment are made simple and immediate thanks to the GALLETTI Commissioning app, specifically developed for installers.

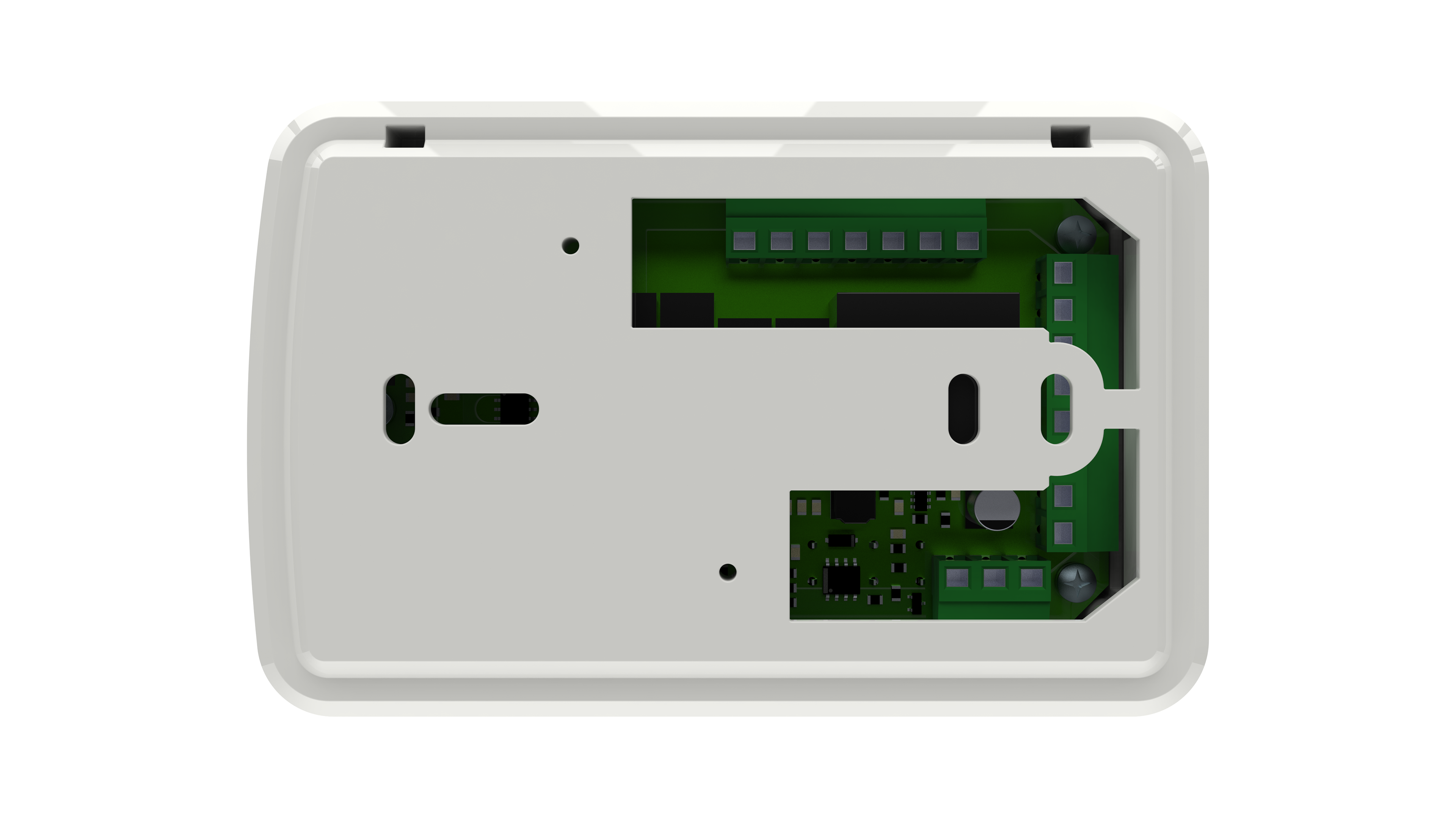

Terminal block
Terminal block

The rear of the controller features dedicated cable routing slots that maximise ease of wiring management, simplifying the installation process.

Device management

The control system is capable of managing up to two 230V on/off valves and an electric heater for two-pipe systems. It is also able to control AC and EC motors. A configurable digital input is available, adaptable to the occupant’s requirements.

Accesorios relacionados

GEEC485 - Microprocessor controller with serial communication port MCSWE - Sonda de agua para controles EVO, MYCOMFORT, GEEC AUGKBL - Left-side installation kit for GEEC controller on ART-U unit AUGKBR - Right-side installation kit for GEEC controller on ART-U unit FYGKBL - Left-side installation kit for GEEC controller on FLAT / FLAT S unit FYGKBR - Right- side installation kit for GEEC controller on FLAT / FLAT S unit
